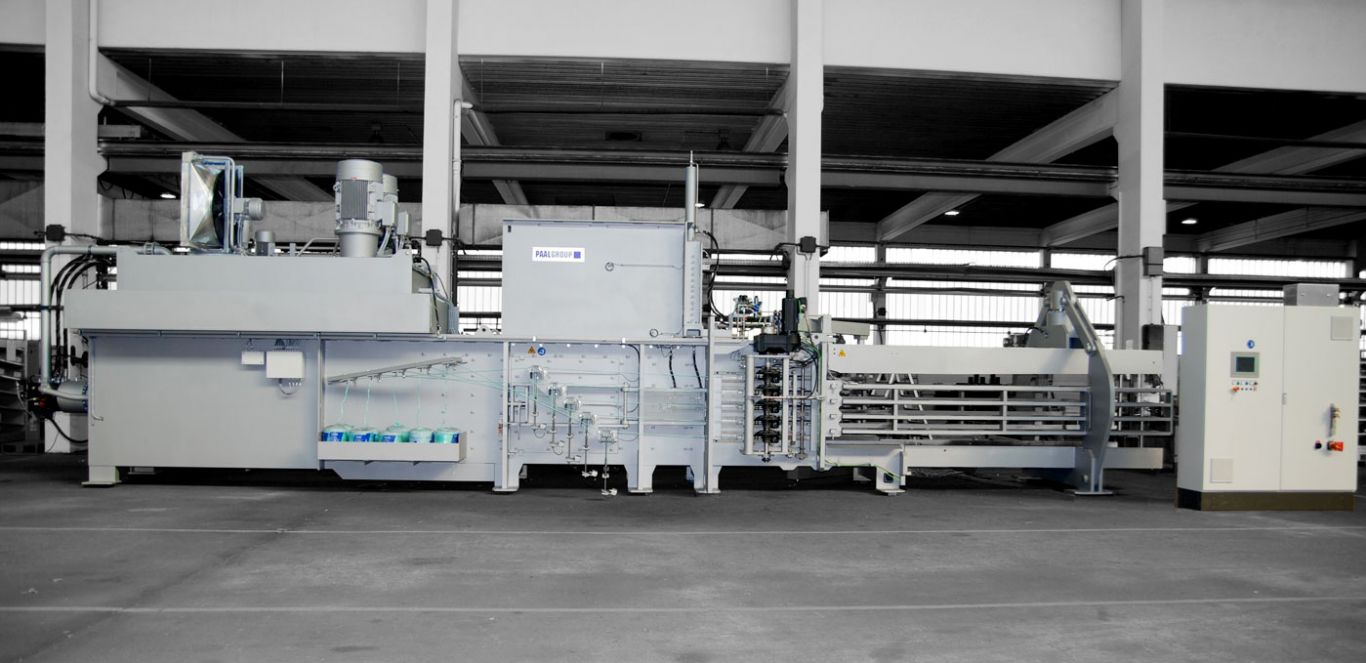

DOKON SERIES
The PAAL DOKON range of balers provides pressing forces of between 80 and 200 tonne with bale formats of either 800 x 1100 m or 1100 x 1100 mm. Unlike steel-tied bales, a DOKON bale is ideal for wrapping (no sharp edges) and for incineration as he twine burns.
Technical Data
| Working Data | Unit | 275 H | 500 H | ||||
| Pressing force | t(kN) | 82 (802) | 122 (1,197) | ||||
| Spec. pressing force | N/cm² | 91 | 99 | ||||
| Feeding volume | ca. m³ | 2,1 | 3,45 | ||||
| Number of twine tyings | Pieces | 4 | 5 | ||||
| Driving power | KW | 37 | 55 | 2 x 45 | 45 | 55 | 2 x 55 |
| Press output (ideal) | max.m³/h | 415 | 610 | 720 | 430 | 650 | 1135 |
| Press output (under load – 100 kg/m³) | max.m³/h | 220 | 300 | 370 | 250 | 325 | 535 |
| Press capacity (weight at RDF) | |||||||
| 100 kg/m³ | ca. t/h | 22 | 30 | 37 | 25 | 33 | 53,5 |
| 150 kg/m³ | ca. t/h | 28,5 | 38 | 48 | 30 | 39 | 64,5 |
| 200 kg/m³ | ca. t/h | 31 | 41 | 51 | 35 | 46 | 75 |
