R900 Track-Mounted Impact Crusher
THE COMPACT CRUSHER – THE OPTIMAL CHOICE FOR A VARIETY OF APPLICATIONS!
The fully hydraulic, track-mounted impact crusher R900 is ideal for flexible recycling applications with asphalt, concrete and demolition debris. Futhermore it is used of job sites with heavy virgin stones.
The mobile crushing plant R900 guarantees highest performance at a very high crushing ratio. Due to 2 hydraulically adjustable swing-beamsm as well as variation of the rotor speed, the final grain can be optimally influenced.
Technical Data
| Entry opening | 900 x 720 mm / 36" x 29" |
| Rotor | 4 hammers |
| Crusher drive | Hydrostatic |
| Swing beams | 2 (individually adjustable) |
| Gap adjustment | Fully hydraulic |
| Drive unit | Tier A3 – Stage IIIA / Tier 4 Final – Stage IV / Stage V |
| Pre-screen | Vibrating (to avoid blockages) |

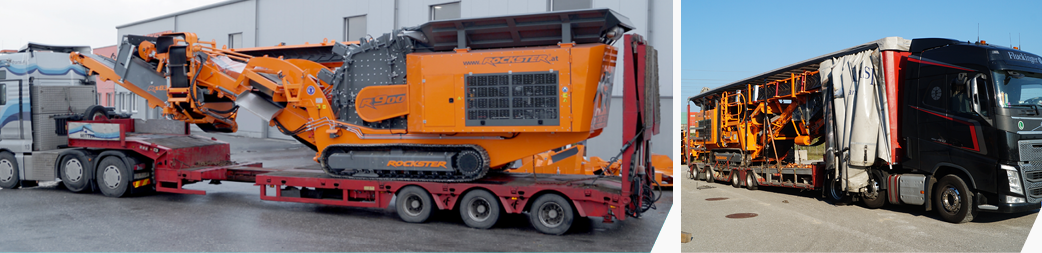

| Transport dimensions & Weight R900 | Length 9,60 m / 31’6" Width 2,50 m / 8’3" Height 3,20 m / 10’6" Weight 25,50 t / 56,300 lbs |
